2-in-1 LTE/GPS antenna

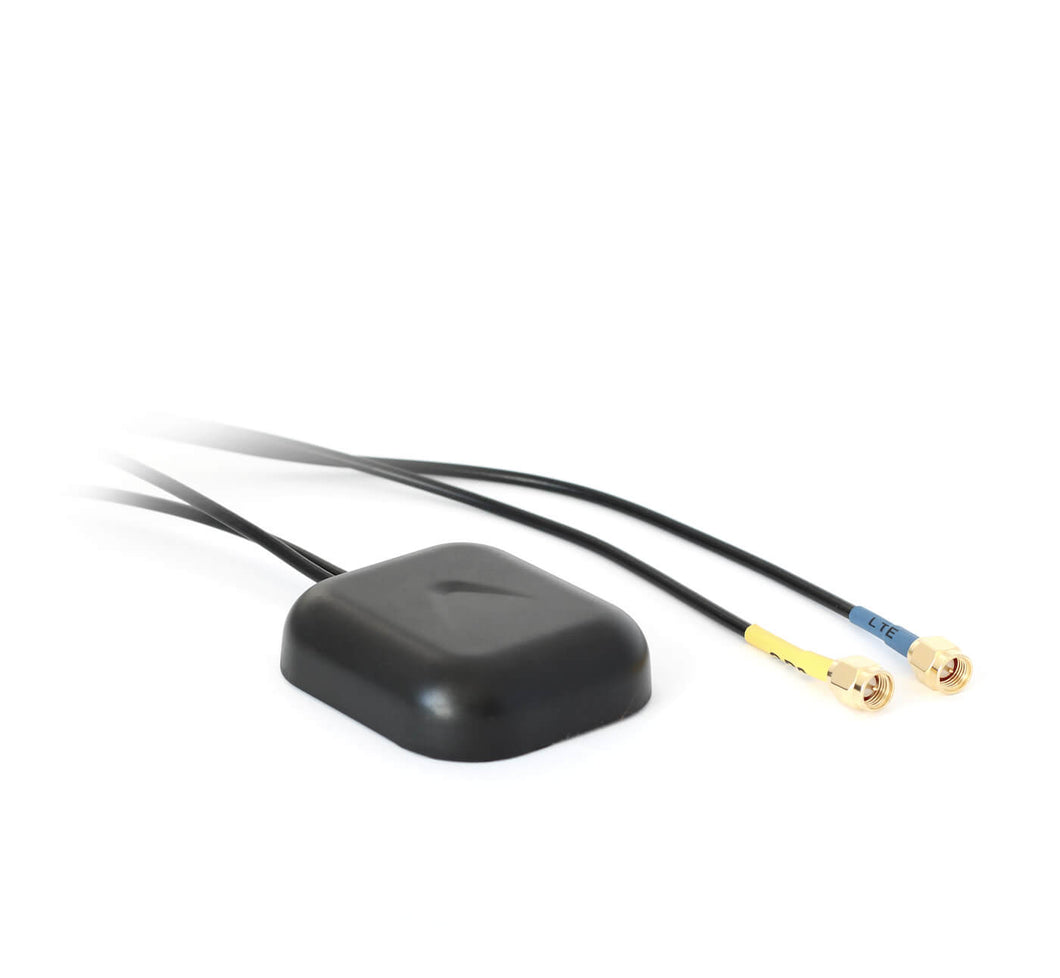

2-in-1 antenna (3G/4G LTE + GPS)

This 2-in-1 antenna covers 3G/4G (698-2700 MHz) and GPS (1575 MHz). It comes in a compact 52 x 60 x 16 mm IP66 housing with a magnet mount.

The antenna provides two 3 meter cables with SMA connectors (blue: LTE, yellow: GPS), enabling flexible deployments.

When you purchase the CANedge3 this antenna can be selected as an option.

20 EUR
In stock | Prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.


ELECTRICAL (LTE)
Frequency range 698-2700 MHz
Efficiency 600 MHz (64%), 698 MHz (64%), 960 MHz (52%), 1710 MHz (60%), 2170 MHz (80%), 2300 MHz (59%), 2700 MHz (60%)
VSWR LTE: 600-698 MHz (3.0), 960-2700 MHz (2.0)
Impedance 50 Ohm
Power Consumption 5V-2 mA (LTE)
ELECTRICAL (GPS)
Frequency range 1575.42 MHz
Impedance 50 Ohm
Power Consumption 3V-10 mA (GPS)
MECHANICAL
Dimensions 52 x 60 x 15 mm
Cable length 3 meters (2 cables)
Connector 2 x SMA male (blue: LTE, yellow: GPS)
IP rating 65
Operating temperature -40 degC to +85 degC
Mounting type Magnet mount
Radome Type ABS

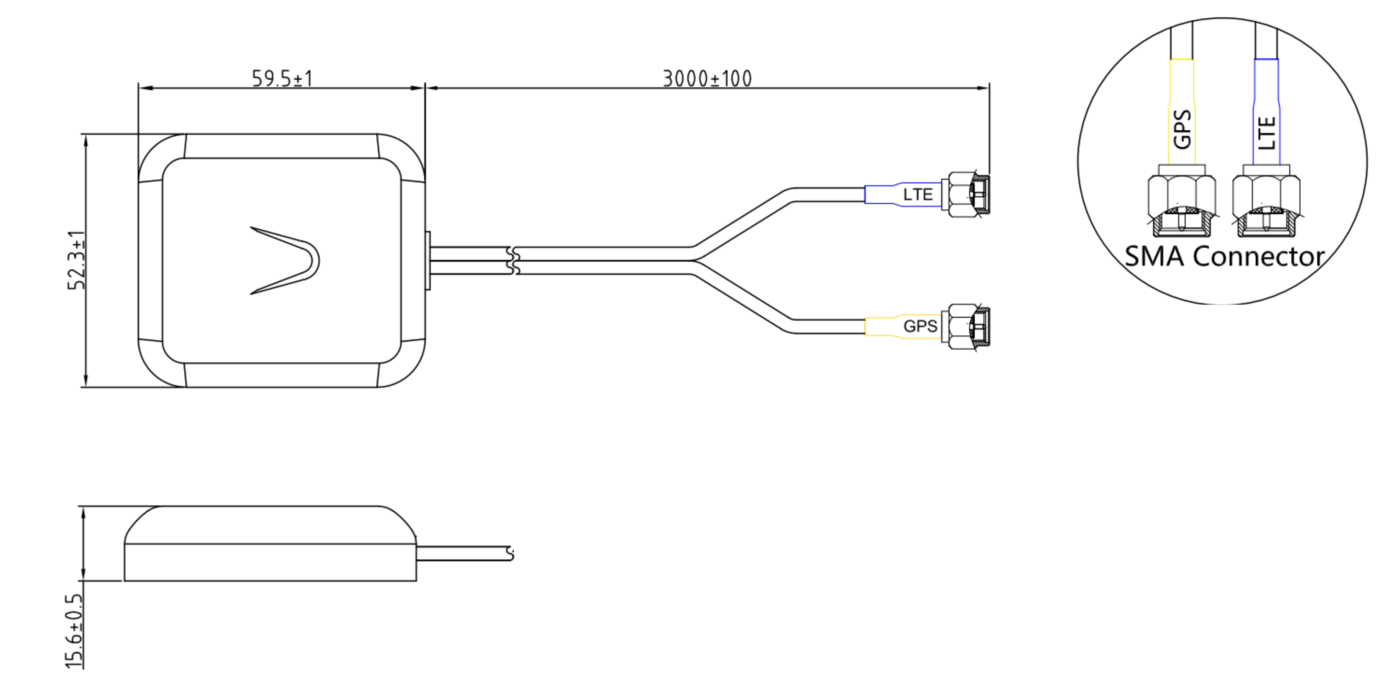

4G LTE 2 in 1 antenna dimensions
