DB9 5 meter extension cable CAN bus female female

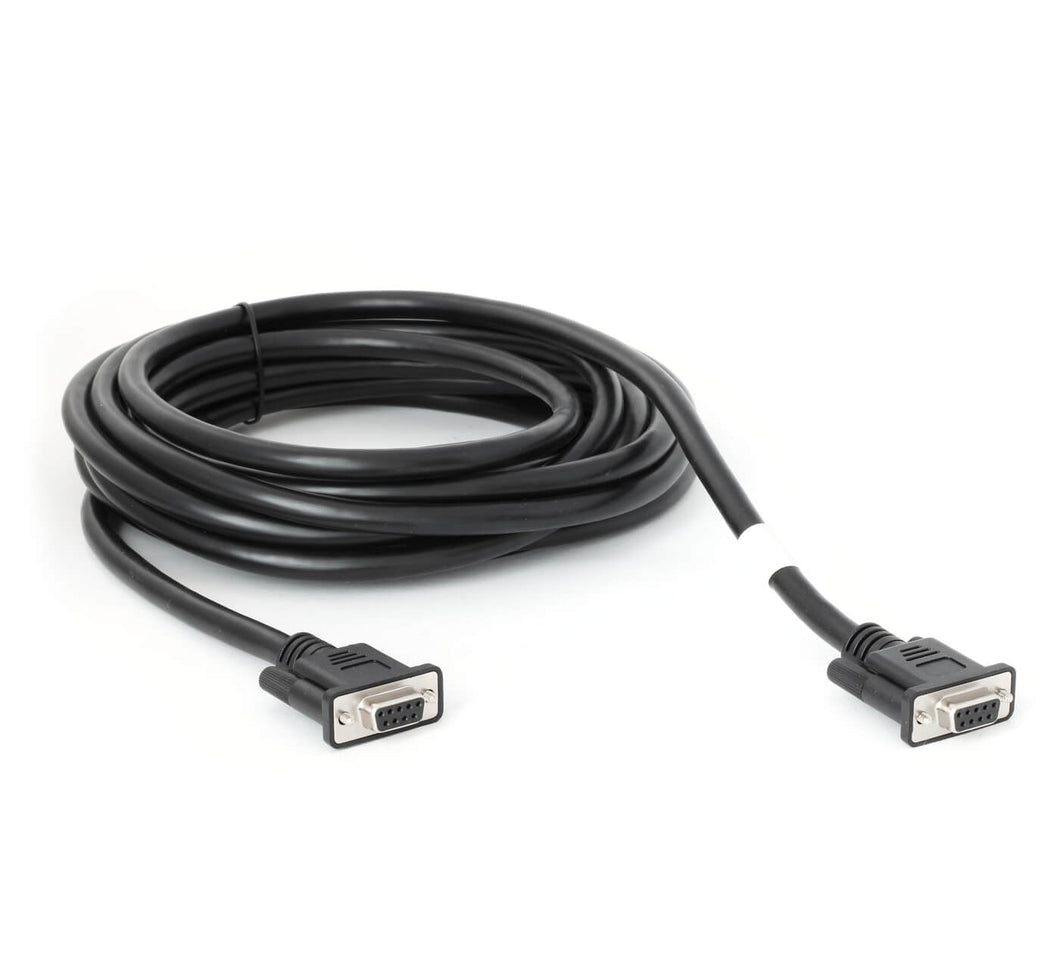

DB9-DB9 Extension Cable (5M, CAN Bus)

Need to extend your CAN bus?

This 5 meter DB9 female to DB9 female extension cable lets you easily connect a CANmod to a CANedge 2nd port - while deploying the devices far apart. A direct connection can be made due to the 2 x female connectors.

The connectors are non-terminated, letting you flexibly combine the cable with our DB9-DB9 (3M) or DB9-DB9/DB9 (Y-splitter) cables.

Buy now - or learn more below!

60 EUR
In stock | Prices ex VAT/duties | PDF quotation
 i  To get a PDF quotation, you can go through the normal purchase process via our webshop.

Under 'Payment Method', you can select 'Request PDF quotation'. Once you submit your request, we will send the PDF quotation in <30 minutes.

If you prefer, you can of course also contact us.



Solid Quality Rugged Cable AWG SOLID QUALITY

Rugged quality adapter cable with 22 AWG (0.5 mm2) thickness

Non Terminated Large CAN Bus Systems COMBINE

Cables are non-terminated and can be combined multiple times

Easily Access Logger in Remote Locations EXTEND

Easily extend the distance between your CANedge and CANmod

Lock Cables with Screws SOLID LOCK

DB9 screw locks ensure a solid connection

Standard CAN in Automation DB9 STANDARD DB9

Works with most CAN bus adapters (CiA 303-1 compatible)

1 Year Warranty 1Y WARRANTY

We offer a 1-year warranty on all our products



About the extension cable

The 5 meter DB9 female to DB9 female CAN bus extension cable is great for connecting multiple CAN nodes in a system. In particular, the use of two DB9 female connectors makes this cable ideal for connecting a CANmod to a CANedge 2nd port when you need to distance the devices.

If your goal is instead to connect a CANedge/CANmod to an existing CAN bus directly, we recommend to instead use our DB9-DB9 (3M). This is because the 3M cable has a male/female pair - and because it is normally recommended to avoid excessively long stub lengths on a larger CAN bus system (e.g. in a vehicle).

The cable is non-terminated, letting you combine the cable with other DB9 adapter cables. The DB9 pinouts are according to CiA 303-1, meaning that the cable can be used with any of our CAN loggers and adapters - as well as most other CAN tools on the market.

use cases





Check out our tech specs, use cases or FAQ - or buy now!

Do you have any questions?

Contact us

GENERAL
Adapter Cable Length 500 cm
Adapter Pins In accordance with CiA 303-1
Compatibility High Speed CAN Bus (ISO 11898-2) incl. CAN FD, SAE J1939, OBD2, NMEA, CANopen
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) female to female
Temperature Operating temperature: -20degC to +80degC
Weight 660G



Adapter pinout


DB9 (female) Function DB9 (female)
1 VCC (5V) 1
2 CAN-L 2
3 GND 3
4 LIN Data 1 4
5 N/C
6 GND (Optional) 6
7 CAN-H 7
8 N/C
9 VCC 9

Below is an example where the extension cable may be relevant:

CANedge CANmod extension

Connecting a CANedge and CANmod

Need distance between your CANedge and CANmod?

A common use case is to combine the CANedge CAN bus data logger with one or more CANmod devices. In larger vehicles (e.g. heavy-duty) it can be necessary to have significant distance between the CANedge and CANmod. For example, a CANedge2/CANedge3 may be deployed in an area ideal for connectivity - while a CANmod.temp may be placed in an area of interest for temperature measurement. Here, the DB9-DB9 (5M) extension cable makes it quick and easy to connect the devices. If 5 meters is not enough, you can extend the CAN bus further by adding DB9-DB9 (3M) cables.
